Setting the Cutting Conditions

Cutting conditions

• Setting Cutting Quality (QUALITY)
• Setting the Amount of Offset for the Tip of the Blade (OFFSET)
• Setting the Direction of the Coordinate Axis for Cutting (ROTATE)
• Extending the Cutting Area (EXTEND)
• Changing Cutting Speed (UPSPEED)

Setting method

The setting method is common. in procedure4,select the cutting conditions that you want to set.

Example: Changing cutting speed

Make sure that the material is load to the machine.

1. Press several times to display the screen shown in the figure.









2. Press to display the screen shown in the figure.

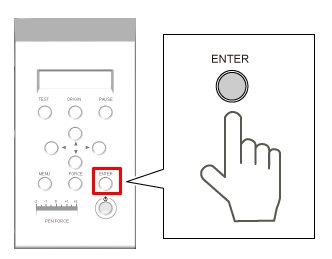

3. Press .



4. Press to choose the item setting that you wish to adjust.



5. Press .

6. Press to set the value.



7. Press .

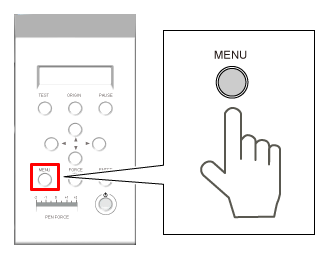

   When you have finished, press the MENU key to go back to the screen in the figure.


   •

8. You can save the cutting conditions you have set.
   "Saving the Cutting Conditions"
