Setting the Direction of the Coordinate Axis for Cutting (ROTATE)

1. This setting lets you set the direction of the coordinate axis for cutting. When set to 0deg (default value), the origin is set at the lower left of the material. When set to 90deg, the origin is set at the lower right of the material, and the data is rotated counterclockwise by 90 degrees. Note that when 90deg is selected, the coordinate axis changes. The arrows in the figure indicate the positive directions of X and Y axes.

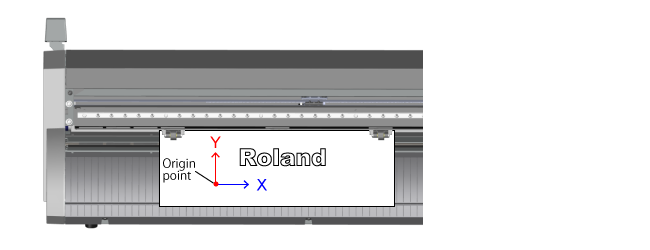

   When Set to 0deg

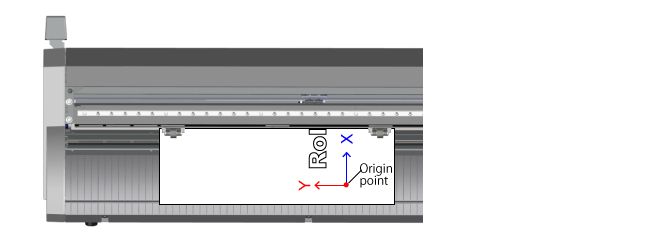

   When Set to 90deg



   Setting method: "Setting the Cutting Conditions"

2. (ROTATE)

   Stored in Memory: Yes

   Factory Default: 0deg

   Selection Choices: 0deg or 90deg
