1. It is possible to extend the cutting area by up to 20 mm.

    Setting method: "Setting the Cutting Conditions"

    Depending on the design to be cut, the pinch rollers may pass over the top of the cutting line.

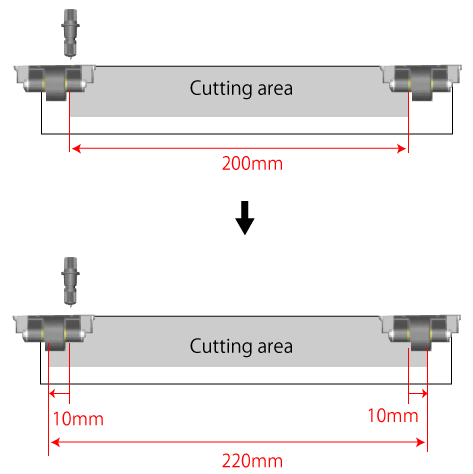

  2. Example: Setting 0 mm → 10 mm

    When "EXTEND" was set after loading a material.

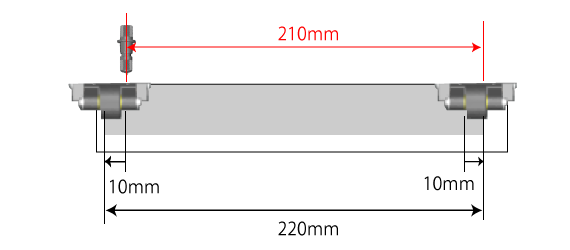

    The value of W displayed in the panel and acual cut width are different.When you set the upper example, the panel is displayed as shown in the figure below.

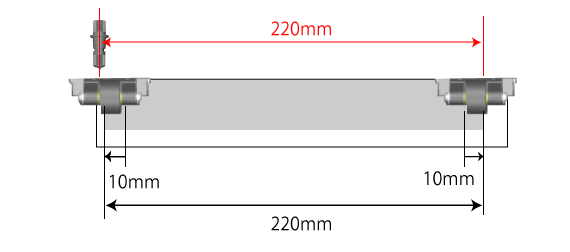

    *The panel indication is 210mm, but the actual cut width is 220mm

    When "EXTEND" was set before loading a material.

    The value of W displayed in the panel and acual cut width are same.When you set the upper example, the panel is displayed as shown in the below figure.

    (EXTEND)

    Stored in Memory: Yes
    Factory Default: 0.00 mm (OFF)
    Setting Range: 0.1 to 10.0 mm
