Step 7: Perform Cutting (Sensor Mode)

Procedure

1. Set the size of the material.

   • Step 7-2: Create Cutting Data

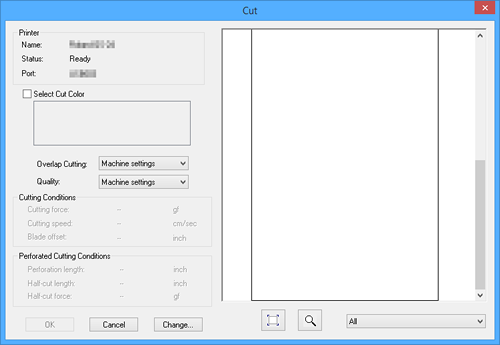

2. Click .

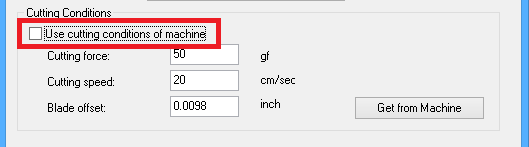

   To change the cutting conditions, click Change, clear the Use cutting conditions of machine check box, and enter values.




3. Click OK.

   The cutting data is sent to the machine. When the machine receives the data, it automatically reads the crop marks using a sensor, and then starts cutting.



   If the sensor fails to read the crop marks

   If the sensor fails to read the crop marks, the screen in the figure appears. If this screen appears, proceed to "Crop Marks Cannot be Read." If this does not resolve the issue, refer to "Cutting in Tool Mode (1)," and perform positioning in tool mode.




1. Remove the cut material.
   • Remove the Material


   The cutting procedure is complete.
