Setting the Overlap Width

1. In the job list, double- click the job to be printed.
   The [Job Settings] window appears.
2. Click .
3. Follow "Printing the Tiled Image" to divide the image into tiles.
4. From the [Type] list box in [Overlap], select the one of the following:

   Top-Left
   Creates overlap widths at the top and left of tiles.

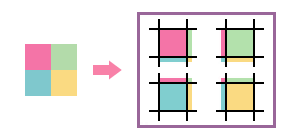

   ALL Corners
   Creates overlap widths around each tile.

5. In [Size], specify the width.
6. To print overlap lines, select [Print Overlap Lines]

   Tip
   • You can set the thickness and the color of overlap lines.

     1. Enter a numeric value in [Thickness] in [Overlap].
     2. Click [Color Settings].
        The [Color Settings] window appears.
     3. Select [RGB] or [CMYK] from [ColorSpace], and then adjust the slider bars or enter the values for each color.
     4. Click [OK].
7. Click [OK].
