Step 1: Set the Printing and Cutting Areas

Procedure

1. Start Illustrator and open a new document.

   Set the artboard.

2. From the Window menu, click Extensions, and then click CutStudioPlugIn.




   The "Roland CutStudio" palette appears.

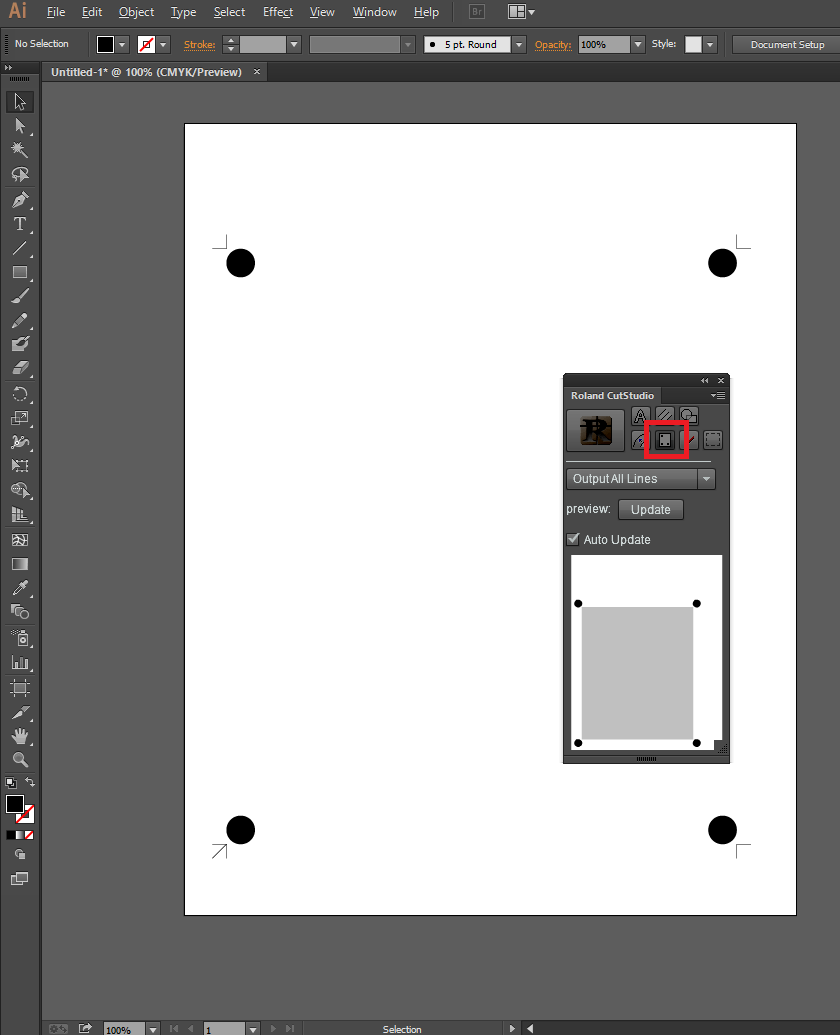

3. On the palette, click .

   Crop marks are inserted in the artboard.




4. Click , and click Crop-marks.

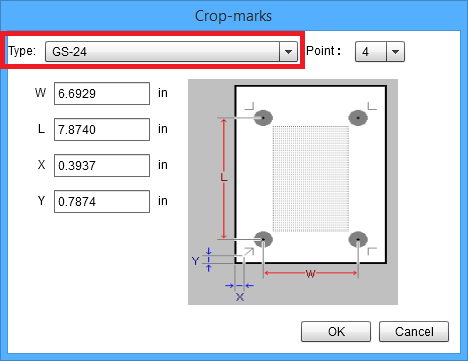

5. In the Type menu, select "GS-24."In the Point, select "4."

   The screen below is displayed.




   Point : Set the number of the crop marks.

6. Set the margins.
