Set the margins and the distance between crop marks. Take into account the margin necessary for cutting the material, and set the crop mark position.
When Using CutStudio
<cropmark : 3 points>
| Size |

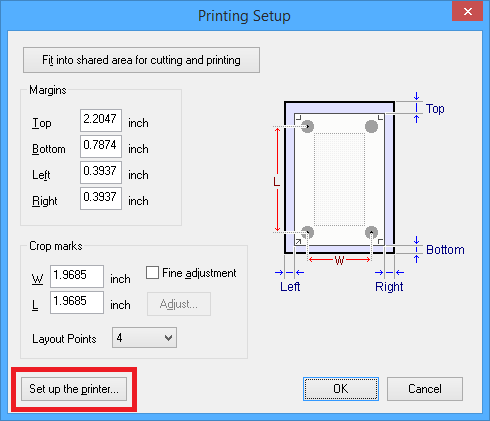

Margin and crop mark settings
|
| A4 portrait | Top: 56 mm, Bottom: 20 mm, Left: 15 mm, Right: 15 mm W: 170 mm, L: 210 mm |
| A4 landscape | Top: 60 mm, Bottom: 20 mm, Left: 30 mm, Right: 17 mm W: 240 mm, L: 120 mm |
| A3 portrait | Top: 60 mm, Bottom: 20 mm, Left: 30 mm, Right: 17 mm W: 240 mm, L: 330 mm |
| A3 landscape | Top: 62 mm, Bottom: 20 mm, Left: 15 mm, Right: 15 mm W: 380 mm, L: 205 mm |
| B4 portrait | Top: 59 mm, Bottom: 20 mm, Left: 15 mm, Right: 17 mm W: 215 mm, L: 275 mm |
| B4 landscape | Top: 57 mm, Bottom: 20 mm, Left: 15 mm, Right: 14 mm W: 325 mm, L: 170 mm |
<cropmark : 4 points>
| Size |
Margin and crop mark settings
|
| A4 portrait | Top: 56 mm, Bottom: 20 mm, Left: 10 mm, Right: 10 mm W: 170 mm, L: 200 mm |
| A4 landscape | Top: 59 mm, Bottom: 20 mm, Left: 30 mm, Right: 16 mm W: 230 mm, L: 110 mm |
| A3 portrait | Top: 59 mm, Bottom: 20 mm, Left: 30 mm, Right: 16 mm W: 230 mm, L: 320 mm |
| A3 landscape | Top: 61 mm, Bottom: 20 mm, Left: 15 mm, Right: 14 mm W: 370 mm, L: 195 mm |
| B4 portrait | Top: 58 mm, Bottom: 20 mm, Left: 15 mm, Right: 16 mm W: 205 mm, L: 265 mm |
| B4 landscape | Top: 56 mm, Bottom: 20 mm, Left: 14 mm, Right: 14 mm W: 315 mm, L: 160 mm |
*When using material with a large amount of feed, it is recommended that the left and right margins are set at around 25 mm.

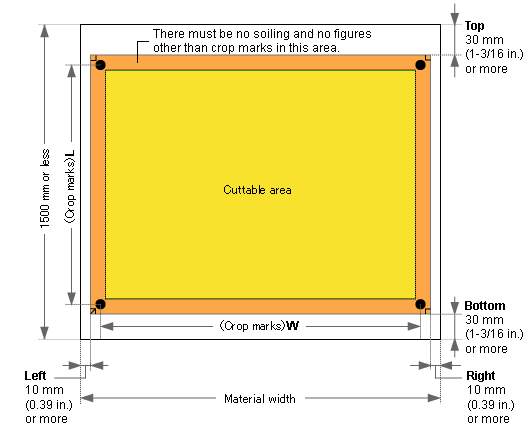

* If you are using material of size larger than A4 that is not listed above, set the values by referring to the figure below.
When Using Illustrator
*When using material with a large amount of feed, it is recommended that the left and right margins are set at around 25 mm.
<cropmark : 3 points>
| Size |

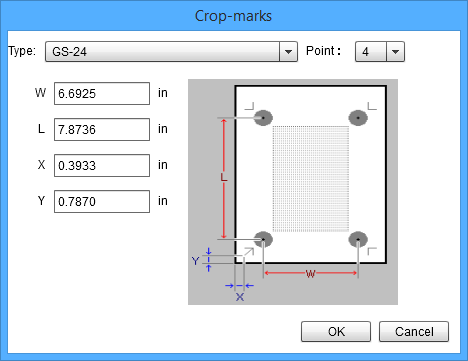

Crop mark positions
|
| A4 portrait | X: 15 mm, Y: 20 mm W: 170 mm, L: 210 mm |
| A4 landscape | X: 30 mm, Y: 20 mm W: 240 mm, L: 120 mm |
| A3 portrait | X: 30 mm, Y: 20 mm W: 240 mm, L: 330 mm |
| A3 landscape | X: 15 mm, Y: 20 mm W: 380 mm, L: 205 mm |
| B4 portrait | X: 15 mm, Y: 20 mm W: 215 mm, L: 275 mm |
| B4 landscape | X: 15 mm, Y: 20 mm W: 325 mm, L: 170 mm |
<cropmark : 4 points>
| サイズ |
Crop mark positions
|
| A4 portrait | X: 10 mm, Y: 20 mm W: 170 mm, L: 200 mm |
| A4 landscape | X: 30 mm, Y: 20 mm W: 230 mm, L: 110 mm |
| A3 portrait | X: 30 mm, Y: 20 mm W: 230 mm, L: 320 mm |
| A3 landscape | X: 15 mm, Y: 20 mm W: 370 mm, L: 195 mm |
| B4 portrait | X: 15 mm, Y: 20 mm W: 205 mm, L: 265 mm |
| B4 landscape | X: 15 mm, Y: 20 mm W: 315 mm, L: 160 mm |

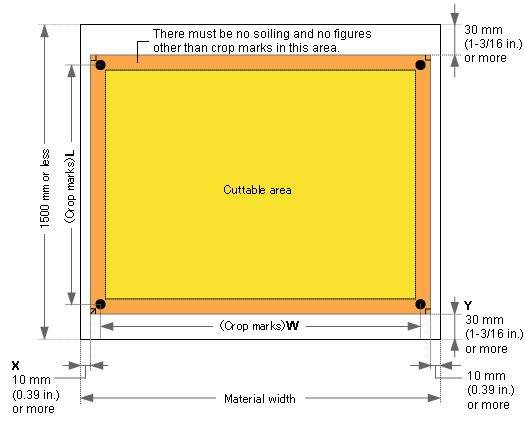

* If you are using material of size larger than A4 that is not listed above, set the values by referring to the figure below.
