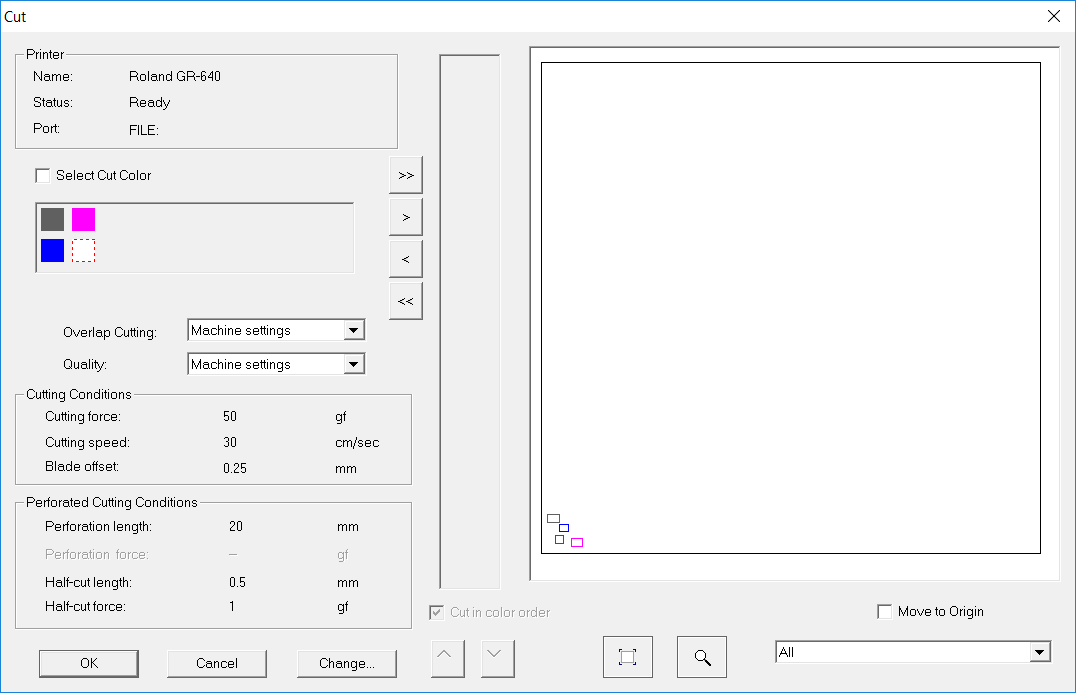

Select Cut Color
Select the color for the cutting line, and cut only the specified cutting lines.
You can select multiple colors.
: Set all the colors as targets for output.
: Set the selected color as a target for output.
: Remove the selected color from the targets for output.
: Remove all the colors from the targets for output.

Cut in color order
Set the output order of the output target cutting lines.
Cutting lines are output in order from the top. To change the output order, click   and  .

Overlap Cutting
This sets a cutting line to be cut multiple times in a single output.
This is useful when cutting thick material. However, please note that the blade can be damaged if you set the number of cuts higher than necessary.

Quality
Select the cutting quality. For quick output, select [HI-SPEED].
For heavyweight material including thick material, select [HEAVY].

Move to Origin
This moves the output target objects (shapes and text) to the origin, keeping their relative positioning unchanged, for cutting.
The cutting position changes, but the line position in CutStudio does not change.

Cutting Conditions/Perforated Cutting Conditions
The values set in the [Cut Setting] dialog box are displayed.

Change
Click this button to make changes to [Cutting Conditions] and [Perforated Cutting Conditions].
Click this button to open the [Cut Setting] dialog box.

Select output line
Select the type of lines to output to the cutting machine.
Select from [Cut Lines Only], [Perforated Cut Lines Only], and [All].
If you select [Cut Lines Only] or [Perforated Cut Lines Only], only the selected line type is displayed in the preview.

[Fit to Screen] button
Click this button to display the entire cutting area in the preview.

[Zoom In] and [Zoom Out] buttons
Zoom in on or out from the preview.

OK
Click this button to send the cutting data to the cutting machine.
