Step 4: Set the Alignment Method
(Manual Mode)

(1) Select Manual Mode

Procedure

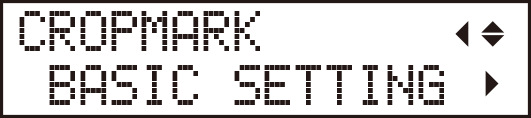

1. Press [MENU] several times to display the screen shown in the figure.



2. Press [] several times to display the screen shown in the figure.



3. Press [].

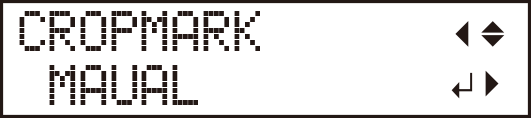

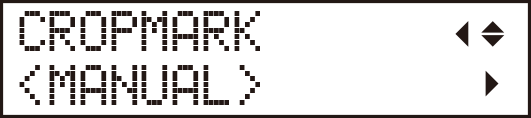

4. Press [] to select MANUAL.



5. Press [ENTER].



6. Press [] twice.



(2) Enter the Distance between the Crop Marks

Enter the values that you made a note of in Step 1, No. 3.

WIDTH
		LENGTH

Procedure

1. Press the [] key, and then press the [] key to display the screen shown in the figure.

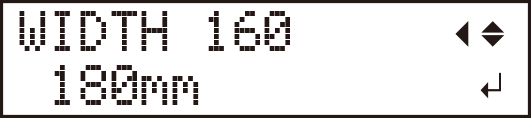

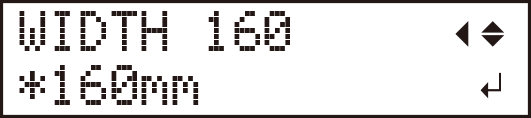

2. Use [] and [] to enter the horizontal distance (WIDTH) between the crop marks.



3. Use [ENTER] to select the setting.

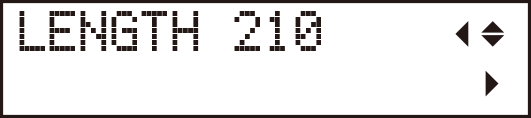

4. Press the [] key, and then press the [] key.

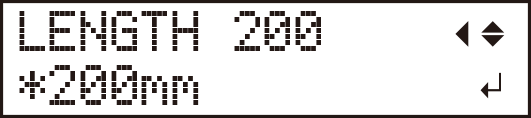

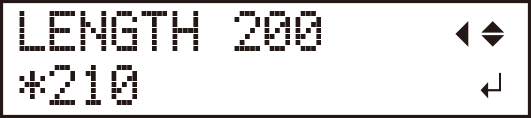

5. Use [] and [] to enter the vertical distance (LENGTH) between the crop marks.



6. Use [ENTER] to select the setting.





(3) Enter the Offset Values

Enter the values that you made a note of in Step 1, No. 4.

If you want to further reduce the misalignment after seeing the result of printing and cutting, measure the amount of cutting line misalignment, and then add this measured value to or subtract this measured value from the offset values.
Set the values as required.

Procedure

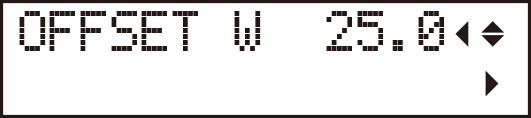

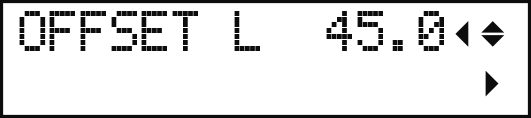

1. Press the [] key, and then press the [] key.

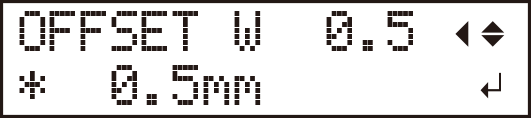

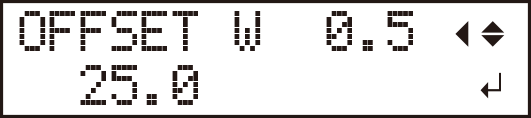

2. Use [] and [] to enter the amount of cutting line misalignment (in the width direction).



3. Use [ENTER] to select the setting.



4. Press the [] key, and then press the [] key.

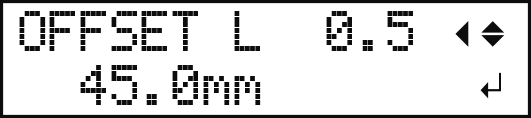

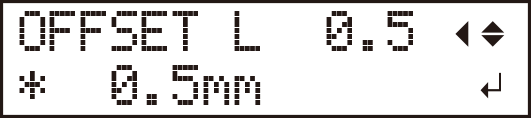

5. Use [] and [] to enter the amount of cutting line misalignment (in the length direction).



6. Use [ENTER] to select the setting.



• Step 5: Perform Cutting (Manual Mode)
