Using a Variety of Materials

Using Flat Material

If flat material is used, it must be at least 70 mm longer than the vertical size of the cutting data. This is the length required for the pinch rollers to feed out the material to the front and rear.

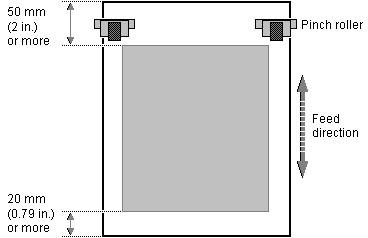

Refer to the figure below and ensure that there are sufficient margins at the front and rear of the material.

Step 1: Load the Material

Using Roll Material

CAUTION

Never load media that weighs over 5 kg (11 lb.).
The machine may fail to withstand the weight and tip over or cause the material
to fall.

Be sure to use the roller base to load the material. If you are not using the roller base, cut the required length of material before loading the material.

Loading Roll Material (1)

Using Material with Perforations for Sprocket Feed

Sprocket-fed material has perforations along each edge. If the pinch rollers are positioned over the perforations, the material cannot be fed correctly. Load the material as shown in the figure.
