Setting the Origin

The origin point can be set arbitrarily using the key. You can use the material with minimal waste by setting the origin to an uncut position of the material.

Procedure

  1. Load the material in the machine, and make it ready for cutting (setup condition).

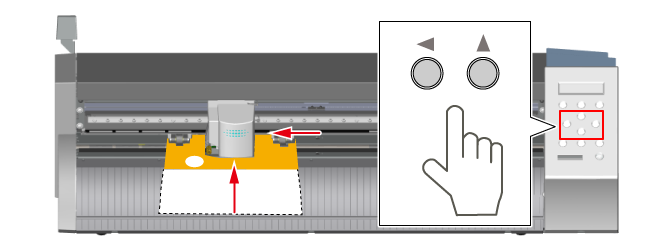

  2. Press to move the cutting carriage to the location you want to cut.



  3. Align the center of the blade to the position you wish to make the origin.

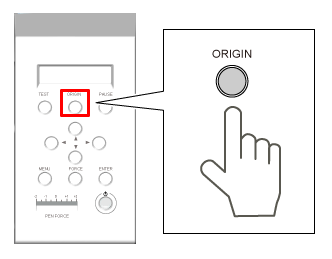

  4. Hold down for one second or longer.

    ORIGIN SET flashes on the display.

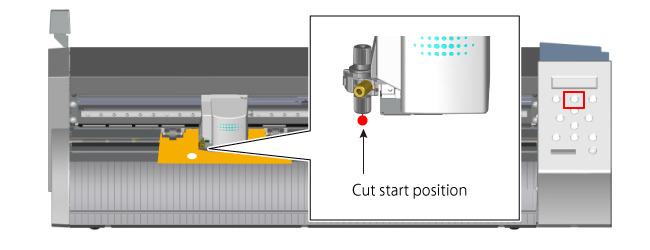

    When the setting is complete, the following screen appears.


  5. Send the cutting data from the computer. Cutting is performed using the specified origin.
