Step 2: Import the Sample Data

1. Click to import image data.




   In this example, you will open the Sample.bmp file found in the CutStudio installation folder (usually located in the CutStudio folder under Program Files on the C drive).

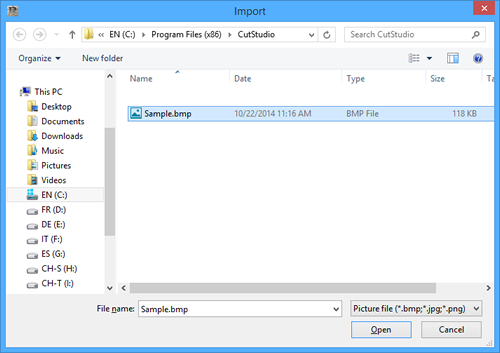

   The screen below is displayed.




   • Sample Data Cannot be Found
   • Illustrator Data Cannot be Imported

   •

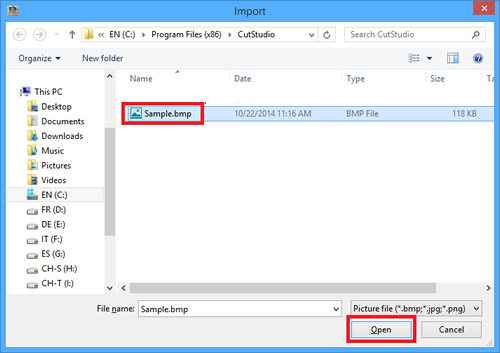

2. Select the image data, and click Open.

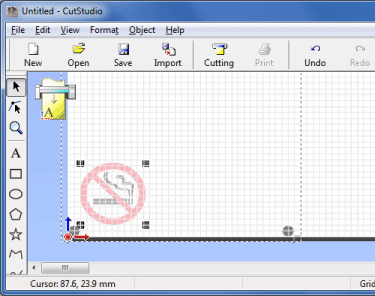

3. Position the image data in the area within the crop marks.







   You can change the density of the imported image. For more details, refer to "Changing the Darkness of an Aligned Image."
