Outputting Data Created in CorelDRAW (for X3 and later)

Procedure

1. Start CorelDRAW.

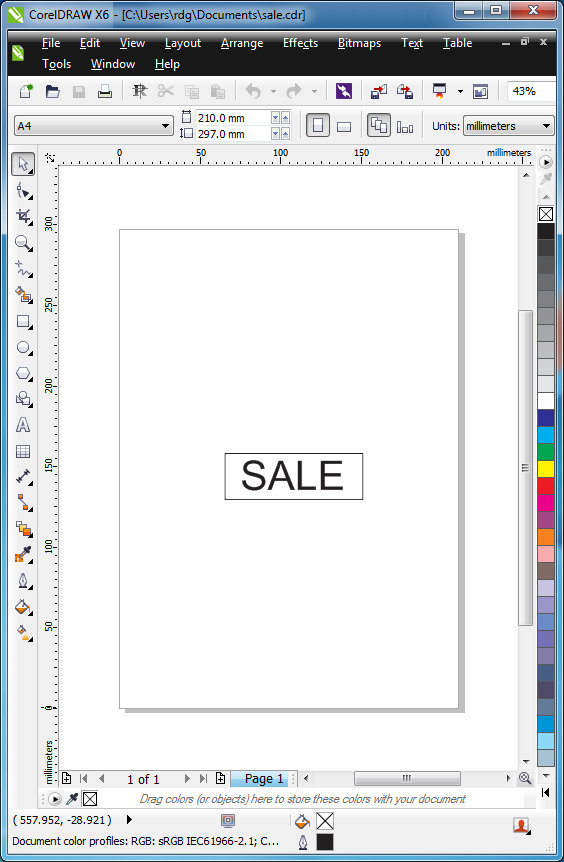

2. Create a new file and create a new design, or open an existing file.



3. On the toolbar, click .

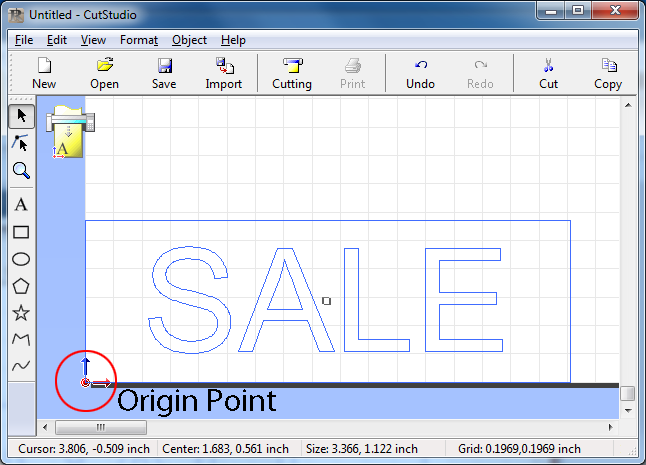

   CutStudio starts, and the cutting line data is sent to CutStudio. The output data is always aligned at the origin of CutStudio regardless of the position on CorelDRAW.



   The data created in CorelDRAW is output to CutStudio according to the following conditions.

   • All graphics and text that are drawn are output to CutStudio.
   • Text is automatically outlined when output to CutStudio.
   • Line width, fill, dashed line, and arrow of lines are ignored.
   • Lines without width are not output.
   • Images are not output.

4. Perform cutting.

   When perform cutting from CutStudio, refer to the procedure of "Simple! Basic Cutting."
