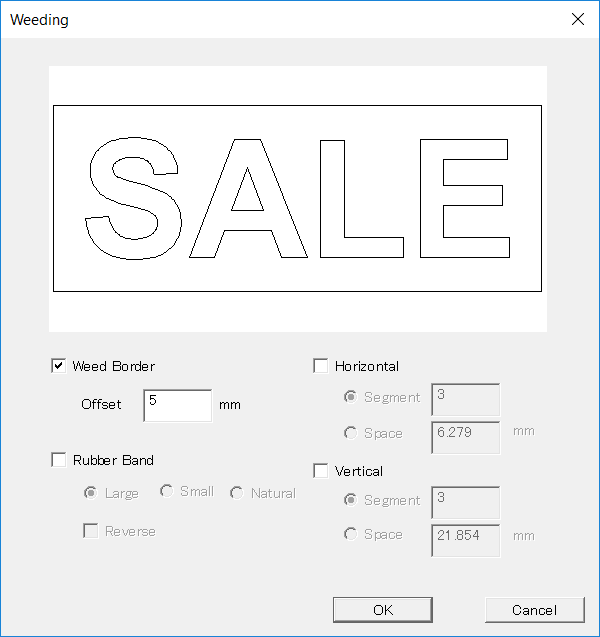

[Weeding] dialog box

[Weeding] dialog box


Weed Border
Select this check box to add a frame that surrounds the selected object.

Rubber Band
Select this check box to draw the frame with curved lines that connect it to the selected object.
This is disabled when the [Weed Border] check box is cleared.

[Large] : The curved frame is drawn with the entirety of the selected object treated as a single object.
[Small] : Curved frames are drawn for each character as its own separate shape. (Even if the shape is text, frames will be drawn for each character.)
[Natural] : Curved frames are drawn for each object. (Character strings are treated as single objects.)
Select the [Reverse] check box to switch the parts of the material that will be peeled off and that will remain. This is disabled when [Large] is selected.

Horizontal, Vertical
Select these check boxes to add grid lines to the selected object.
When the [Weed Border] check box is cleared, the grid lines are added inside the object.


Weed Border Rubber Band Horizontal/Vertical
 Illustration of the line insertion
Selected Selected Selected
Selected Selected Cleared
Selected Cleared Selected
Selected Cleared Cleared
Cleared Selected Selected When the [Weed Border] check box is cleared, the [Rubber Band] check box is disabled.
Cleared Selected Cleared When the [Weed Border] check box is cleared, the [Rubber Band] check box is disabled.
Cleared Cleared Selected
Cleared Cleared Cleared No waste removal lines are used.
