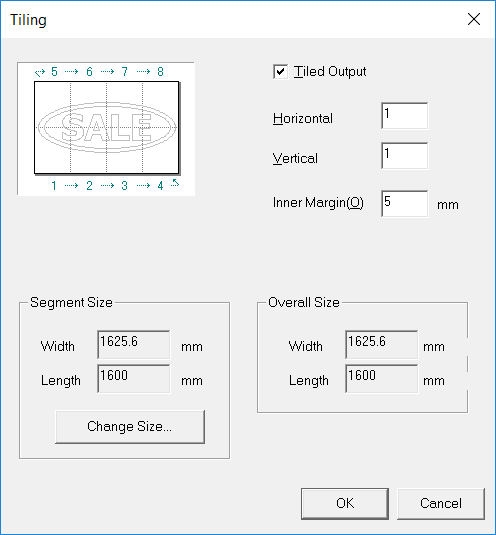

Tiled Output
This takes data that is too large to fit a single piece of material and outputs it divided among a number of pieces of material. You can set [Horizontal], [Vertical], and [Inner Margin] when this check box is selected.

Horizontal, Vertical
Here you enter the number of pieces of material to use for tiled output.
The light-blue numerals and arrows in the explanatory figure indicate the output sequence.

Inner Margin
Enter the width for the inner margin.
The inner margin is applied in order from the bottom piece of material in the vertical direction of the explanatory figure and from the left piece of material in the horizontal direction of the explanatory figure.

Segment Size
This is the size of one sheet in tiled output.
The [Cutting Area] set by the driver is displayed. Changing the [Cutting Area] set by the driver also changes the size displayed here. Click [Change Size] to display the settings screen for the driver and set the [Cutting Area].

Overall Size
This is the final size after taking into account the number of sheets specified with [Horizontal] and [Vertical] and the width specified with [Inner Margin].
